| Brand Name : | CREE |
| Model Number : | CXB3590-0000-000N0YBB56Q/CXB3590-0000-000N0YAB32Q |

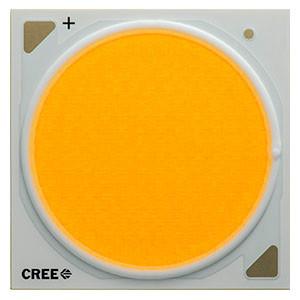

CREE XLamp CXA2 Studio product 100W COB CXB3590 56Q 32Q For Stage Light
| Color Temperature (K) | |||
| 3200 | 5600 | ||
| Min 93 | ✓ | ✓ | |
| Size | 34.85 x 34.85 mm |
|---|---|
| Product Options | 36 V 72 V High-CRI |
| Maximum Drive Current (Standard) | 3.6 A (36 V) 1.8 A (72 V) |
| Max Power (W) | 137 W |
| Light Output | 12404 - 18000 lm |
| Maximum Efficacy at Binning Conditions (lm/W) | 137 lm/W |
| Light Emitting Surface (LES) | 30 mm |
| Typical Forward Voltage | 36 V @ 2400 mA 72 V @ 1200 mA |
| Maximum Reverse Current | 0.1 mA |
| Viewing Angle | 115 ° |
| Binning | 85°C 3-Step EasyWhite® |
| Maximum ESD Withstand Voltage | 8000 V (HBM per Mil-Std-883D) |
| RoHS-Compliant | Yes |
| REACh-Compliant | Yes |
| UL-Recognized | Yes - Level 4 Enclosure Consideration |
|
|
