CREE Xlamp COB generation 25* 25 size 30 W COB CXA1820 80CRI 3000k 4000k 5000k for Indoor down light

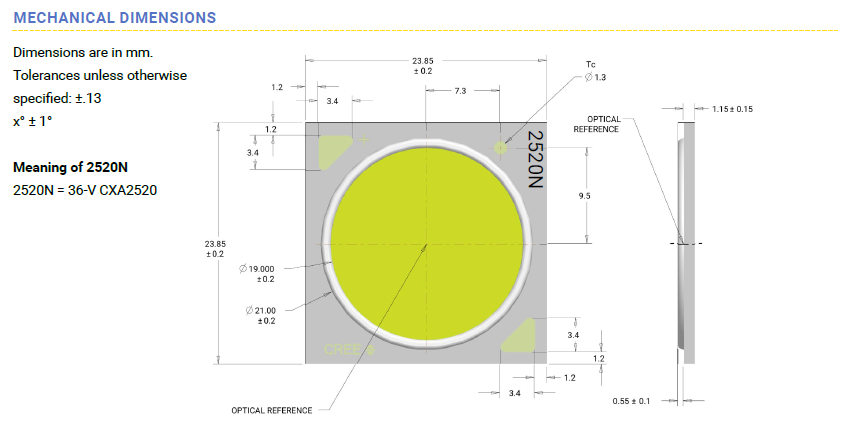

| Size | 23.85 x 23.85 mm |
|---|---|
| Product Options | High-CRI |
| Maximum Drive Current (Standard) | 1.25 A |
| Max Power (W) | 47 W |

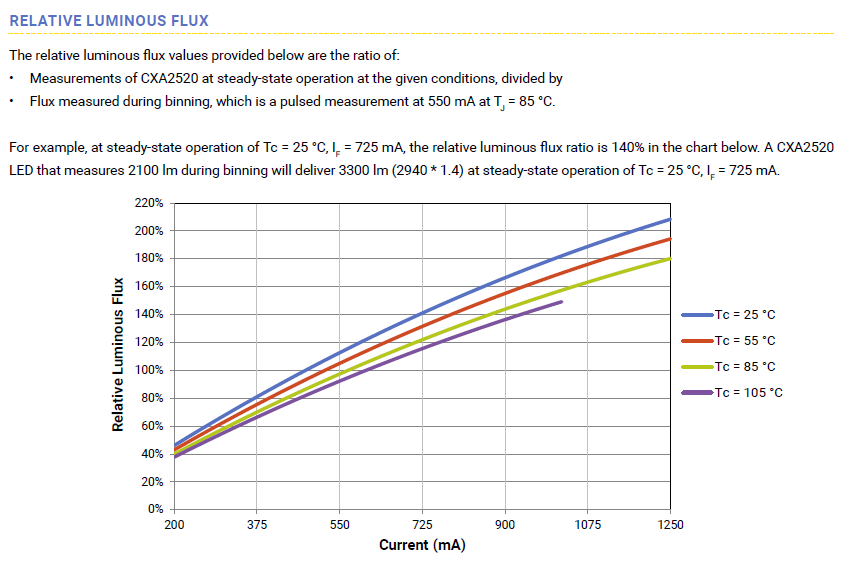

| Light Output | 3000 - 5000 lm |
| Maximum Efficacy at Binning Conditions (lm/W) | 155 lm/W |
| Light Emitting Surface (LES) | 19 mm |

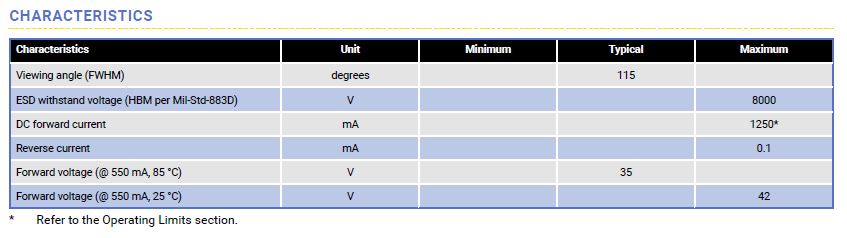

| Typical Forward Voltage | 35 V @ 550 mA |
| Maximum Reverse Current | 0.1 mA |
| Viewing Angle | 115 ° |
| Binning | 85°C ANSI (White) 2- and 4-Step EasyWhite® |
| Maximum ESD Withstand Voltage | 8000 V (HBM per Mil-Std-883D) |
| RoHS-Compliant | Yes |
| REACh-Compliant | Yes |
| UL-Recognized | Yes - Level 4 Enclosure Consideration |
|
|
