| Brand Name : | CREE |
| Model Number : | CXB1304 9v 37v 3000k 4000k 5000k |
CREE Xlamp COB generation 2 CXB1304 3000k/4000k/5000k , Application For 10W Spotlight

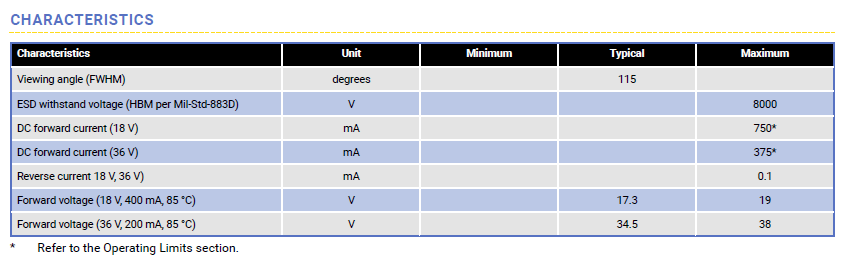

| Size | 15.85 x 15.85 mm |
|---|---|
| Product Options | 18 V 36 V High-CRI eTone |
| Maximum Drive Current (Standard) | 0.75 A (18 V) 0.375 A (36 V) |
| Max Power (W) | 14 W |
| Light Output | 1015 - 1930 lm |
| Maximum Efficacy at Binning Conditions (lm/W) | 173 lm/W |
| Light Emitting Surface (LES) | 9 mm |
| Typical Forward Voltage | 17.3 V @ 400mA (18 V) 34.5 V @ 200mA (36 V) |
| Maximum Reverse Current | 0.1 mA |
| Viewing Angle | 115 ° |
| Binning | 85°C 2- 3- and 5-Step EasyWhite® |
| Maximum ESD Withstand Voltage | 8000 V (HBM per Mil-Std-883D) |
| RoHS-Compliant | Yes |
| REACh-Compliant | Yes |
| UL-Recognized | Yes - Level 4 Enclosure Consideration |
|
|
