| Brand Name : | CREE |
| Model Number : | CXB1304 9v 37v 3000k 4000k 5000k |
CREE 13mm*13mm Size COB LED Chip CXB1304 7W With 3000K,4000K,5000K,6500K Avaiable For Spotlight
| Size | 13.35 x 13.35 mm |
|---|---|
| Product Options | 9 V 18 V 36 V High-CRI eTone |
| Maximum Drive Current (Standard) | 1.0 A (9 V) 0.5 A (18 V) 0.25 A (36 V) |
| Maximum Drive Current (eTone version) | 0.916 A (9 V) 0.458 A (18 V) 0.229 A (36 V) |
| Max Power (W) | 9.5 W |

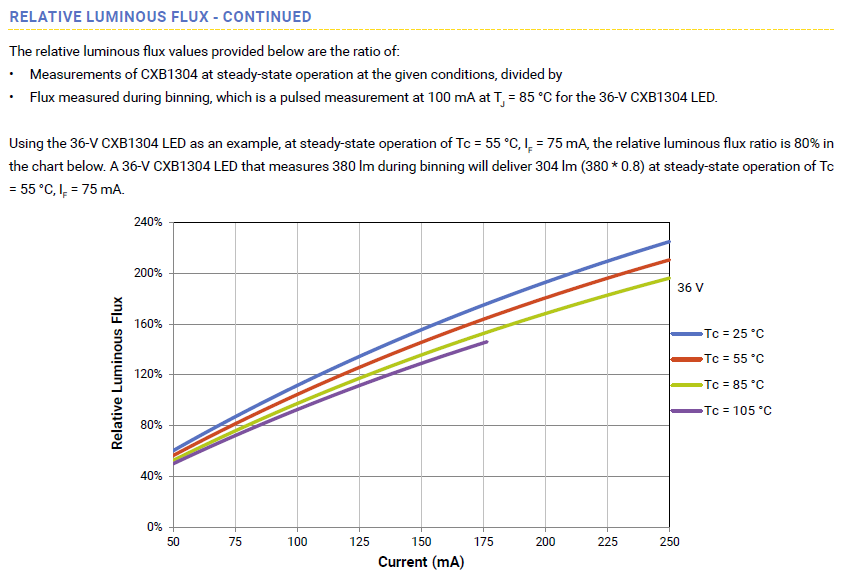

| Light Output | 500 - 1160 lm |
| Maximum Efficacy at Binning Conditions (lm/W) | 172 lm/W |
| Light Emitting Surface (LES) | 6 mm |

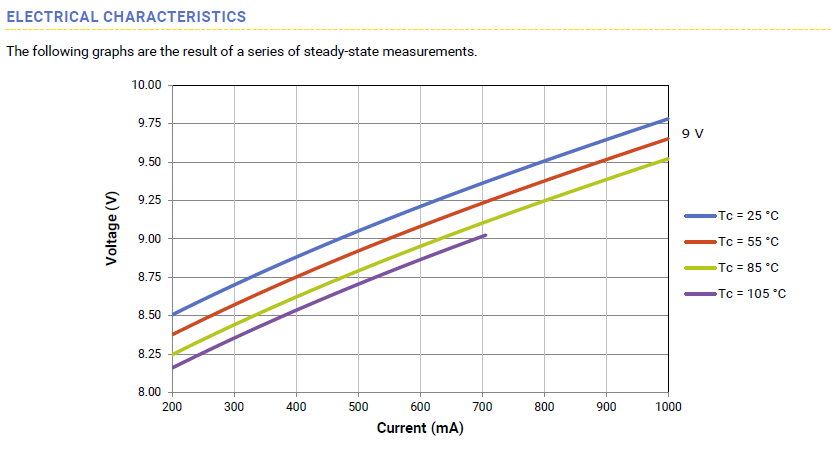

| Typical Forward Voltage | 8.6 V @ 400 mA (9 V) 17.3 V @ 200 mA (18 V) 34.5 V @ 100 mA (36 V) |
| Maximum Reverse Current | 0.1 mA |
| Viewing Angle | 115 ° |
| Binning | 85°C 2- 3- and 5-Step EasyWhite® |
| Maximum ESD Withstand Voltage | 8000 V (HBM per Mil-Std-883D) |
| RoHS-Compliant | Yes |
| REACh-Compliant | Yes |
| UL-Recognized | Yes - Level 4 Enclosure Consideration |
|
|
