| Brand Name : | CREE |
| Model Number : | CXB1512 3000K 4000K 5000K |
CREE Xlamp COB generation 2 CXB1512 3000K/4000K/5000K application 20w track light/down light CREE COB LED CXB1512
| Size | 15.85 x 15.85 mm |
|---|---|
| Product Options | 18 V 36 V High-CRI eTone |

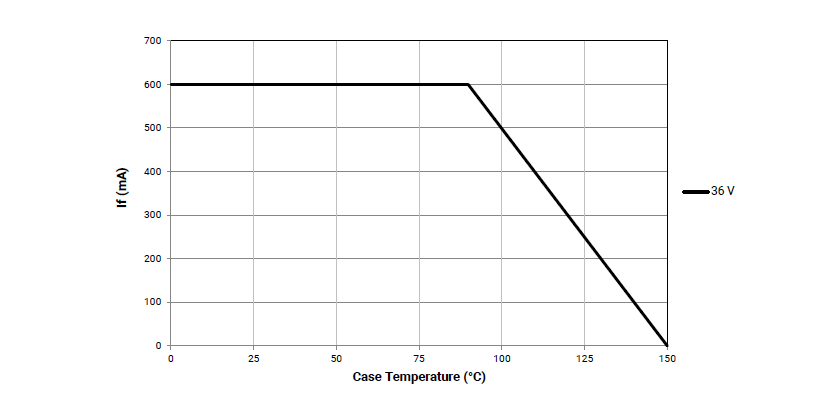

| Maximum Drive Current (Standard) | 1.2 A (18 V) 0.6 A (36 V) |
| Max Power (W) | 22 W |
| Light Output | 1746 - 3185 lm |
| Maximum Efficacy at Binning Conditions (lm/W) | 174 lm/W |
| Light Emitting Surface (LES) | 9 mm |

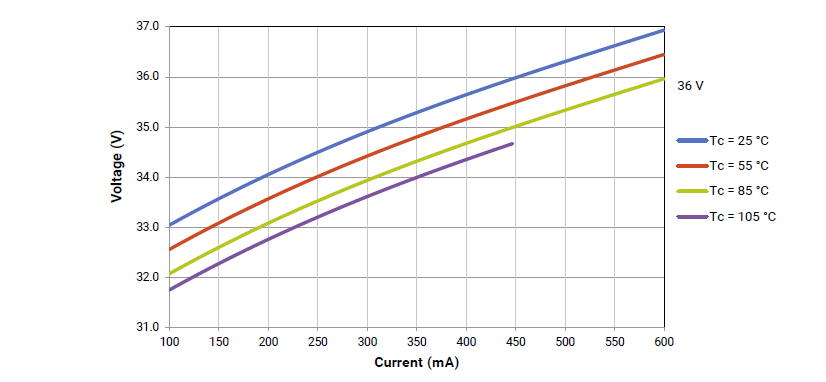

| Typical Forward Voltage | 17.2 V @ 700mA (18 V) 34.3 V @ 350 mA (36 V) |
| Maximum Reverse Voltage | 0.1 V |
| Viewing Angle | 115 ° |
| Binning | 85°C 2- 3- and 5-Step EasyWhite® |
| Maximum ESD Withstand Voltage | 8000 V (HBM per Mil-Std-883D) |
| RoHS-Compliant | Yes |
| REACh-Compliant | Yes |
| UL-Recognized | Yes - Level 4 Enclosure Consideration |
|
|
