| Brand Name : | cree |
| Model Number : | CXB1820 3000K 4000K 5000K |
CREE Xlamp COB generation 2 CXB1820 3000K/4000K/5000K application for 30W track light
| Size | 17.85 x 17.85 mm |
|---|---|
| Product Options | High-CRI eTone |

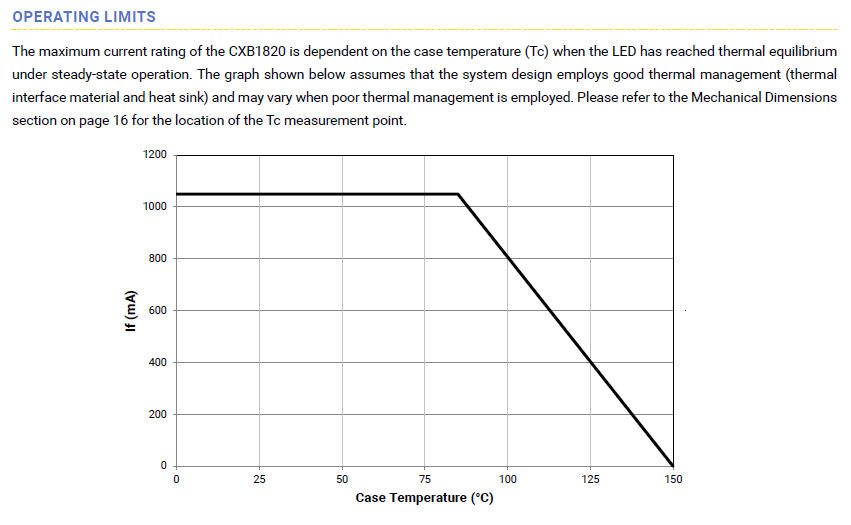

| Maximum Drive Current (Standard) | 1.050 A |
| Maximum Drive Current (eTone version) | 1.044 A |
| Max Power (W) | 40 W |
| Light Output | 2850 - 5400 lm |
| Maximum Efficacy at Binning Conditions (lm/W) | 179 lm/W |
| Light Emitting Surface (LES) | 12 mm |

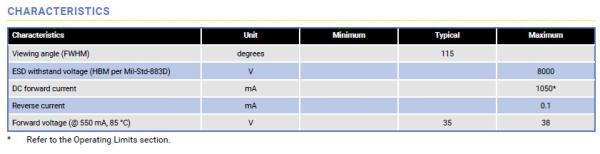

| Typical Forward Voltage | 35 V @ 550 mA |
| Maximum Reverse Current | 0.1 mA |
| Viewing Angle | 115 ° |
| Binning | 85°C 2- 3- and 5-Step EasyWhite® |
| Maximum ESD Withstand Voltage | 8000 V (HBM per Mil-Std-883D) |
| RoHS-Compliant | Yes |
| REACh-Compliant | Yes |
| UL-Recognized | Yes - Level 4 Enclosure Consideration |
|
