CREE Xlamp XML Color RGBW XMLCTW With Red Green ,Royal-Blue and White in one LED Applicated in Stage light

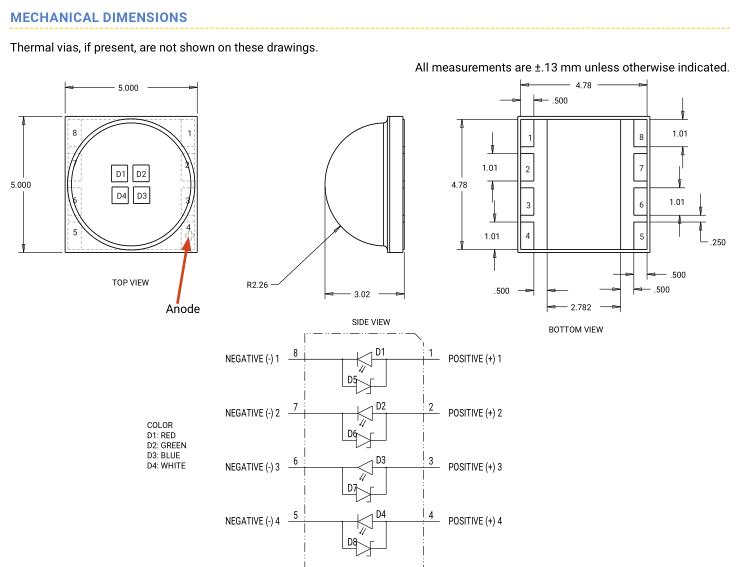

| Size | 5 x 5 mm |
| Product Options | Color (RGBW in one package) |

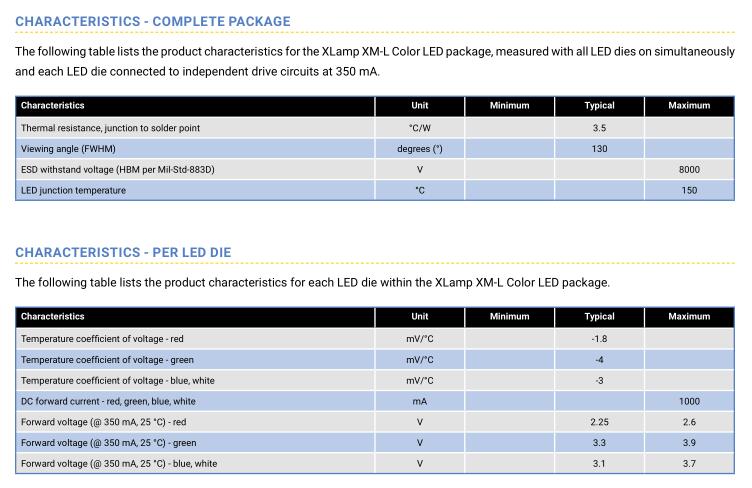

| Maximum Drive Current (Standard) | 1 A per LED die |
| Maximum Efficacy at Binning Conditions (lm/W) | 111 lm/W |
| Typical Forward Voltage | 2.25 V per LED die Red @ 350 mA |
| 3.3 V per LED die Green @ 350 mA | |
| 3.1 V per LED die Royal Blue and White @ 350 mA | |
| Viewing Angle | 130 ° |
| Maximum Junction Temperature | 150 °C |
| Maximum ESD Withstand Voltage | 8000 V (HBM per Mil-Std-883D) |
| Reflow Solderable | Yes - JEDEC J-STD-020C-compatible |
| RoHS-Compliant | Yes |
| REACh-Compliant | Yes |
|
