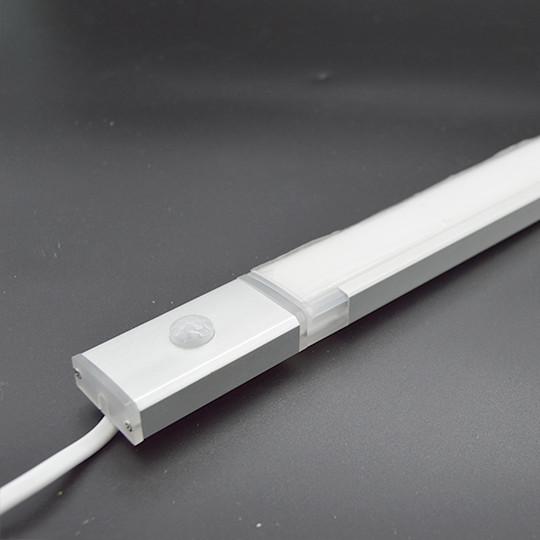

Length 300mm Thin Led Under Cabinet Lighting , 300-350lm Kitchen Cabinet Light Fittings
Product description:
Voltage:DC( 12V version is optional)
Operating Temperature:32-113F(0-45°)
Lamp Life:40 000hrs/70%
Color Temperature:2700k,3000k,4000k,6000k
CRI:>80
Energy efficiency:70Lm/W
Degree of Protection:IP20
Product Features:
Perfect Lighting Distribution,No Spot dot
DIY Link available –Quick Connection system Between light bars
Six options of basic lengths ,can DIY any length
Various installation methods avaiable
Full sets of accessories
Constant voltage circuit design support 6m Link with tiny light difference
Soft light, good for eyes
Sensor switch function
Product Data sheet
| PN | H015-3W | H030-5W | H060-9W | H090-14W | H100-15W | H120-17W |
| Length(mm) | 150 | 300 | 600 | 900 | 1000 | 1200 |
| Watt(W) | 3 | 5 | 9 | 14 | 15 | 17 |
| LED Qty(pcs) | 18 | 36 | 72 | 108 | 120 | 144 |
| Voltage(V) | DC24 | DC24 | DC24 | DC24 | DC24 | DC24 |
| Lumens(Lm) | 180-210 | 300-350 | 540-630 | 840-980 | 900-1050 | 1020-1190 |
| Light Efficacy(Lm/W) | 60-70 | 60-70 | 60-70 | 60-70 | 60-70 | 60-70 |
| CCT(K) | 2700K, 3000K,4000K,6000K | |||||
| CRI(Ra) | 82/92 | |||||
| Beam Angle(°) | 100 | 100 | 100 | 100 | 100 | 100 |
| Dimmable | YES | YES | YES | YES | YES | YES |
| Power Factor(PF) | 1 | 1 | 1 | 1 | 1 | 1 |
| Lifetime(Hrs) | 40000 | 40000 | 40000 | 40000 | 40000 | 40000 |
Product Package
| Model | Airline2-H015-3W | Airline2-H030-5W | Airline2-H030-5W | Airline2-H030-5W | Airline2-H030-5W | Airline2-H030-5W |
| Box*Size | 645*254*42mm | 645*254*42mm | 645*254*42mm | 645*254*42mm | 645*254*42mm | 645*254*42mm |
| Qty/Box | 40 | 20 | 10 | 10 | 10 | 10 |
| Carton Size | 670*265*200 | 670*265*200 | 670*265*200 | 670*265*200 | 670*265*200 | 670*265*200 |
| Qty/Carton | 160pcs | 80pcs | 40pcs | 40pcs | 40pcs | 40pcs |
| G.W | 12kg | 12kg | 12kg | 16.5kg | 17.8kg | 22kg |
|
|
